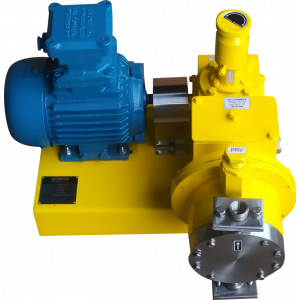

Hydraulically Operated Diaphragm Pump

AvailabilityIn Stock
CategoryDosing Pumps, Hydraulic Diaphragm Pump, Metering Pumps, Chemical Dosing Pumps, Chemical Injection Pumps
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Hydraulically Operated Diaphragm Pump Details

Type : Hydraulic Diaphragm Type Metering Pump.

Flow Rate : 0 to 7,000 litres per hour. Higher capacity can be achieved by multiplexing head.

Pressure Range : Stainless steel head standard pressure up to 300 kg/cm2. Special head up to 1000kg/cm2.

Features:

• Leak free design.
• All moving parts including plunger is running in oil.
• Diaphragm rupture detection system available.
• High metering accuracy.
• In built pressure relief valve in hydraulic circuit.
• Diaphragm life more than 20000 working hours.
• Automatic capacity control via pneumatic or electric signal on demand

Application:

Versatile and suitable for any liquid including toxic and hazardous.
1) Simplex Hydraulic Diaphragm Pumps
2) Double Hydraulic Diaphragm Pumps
3) Duplex Hydraulic Diaphragm Pumps

Technical specification:

NoModelCapacityMax Pressure
1.VHYD - O10 to 15280
2.VHYD - O20 to 76199
3.VHYD - O30 to 3000250
4.VHYD - O40 to 6000300
